El refugio de carga de la carga del almacén inflable Yueruis® o el sello de muelle, utilizando el soplador de aire para reducir la brecha entre el contratinador y el almacén. También el refugio de muelle inflable también está con la ventaja de mantenimiento de la temperatura y no dejar que dos lados no hay diferencia. El uso del refugio de muelle inflatbale aumentará la alta eficiencia en la carga y la descarga en una aplicación de prohibición y también la conservación de la energía.
What is the charactor of Yueruis® Inflatable Warehouse Loading Dock Shelter or Dock Seal?
Installated on the external wall of the warehouse, the Yueruis® Inflatable Warehouse Loading Dock Shelter or Dock Seal, is occupied when the contrainer truck entered,working under the protection of the dock shelter, with the best sealing thermal function, the good enviroment protection,the free weather effect, the significant resistance the entering of the insect and the great increasing of loading efficiency.
1)The dock shelter’s opening size matches with the size of loading and unloading area, which like a sealing room for goods between vehicle and warehouse.
2) A relative room was formed when vehicle entered the indoor room of dock shelter.
3)It also used for an effective application for some place with better environmental demands.
4)A comprehensive range of equipment to optimize vehicle loading and unloading.
Material:
1) Hop dip Galvanized steel frame
2) Double Weavne Polyeater fabric + industrial sponge with a good applicaiton of the gap.
3) High performance and good sealing function
4) Tailor- made size based on the door opening
5)Fixed dock shelter frame made from authoritarian aluminum material
6) Bracing for Inflatable Warehouse Loading Dock Shelter or Dock Seal components bracket installation, can retract when the truck hit the dock shelter, has a good anti-collision function
7) Standard color: Black
|
Max Size |
4500*4500 |
Working Temperature |
-35℃—+70℃ |
|
Curtain weight |
3.6kg/m |
Material |
Cordura1000 |
|
Door frame |
aluminum alloy |
Inflation time |
40s |
|
Color |
BLACK |
Power |
220v/380v,50Hz |
|
Protection class |
IP54 |
Installation space |
Factory / warehouse |
There are top seal posts and two side seal posts. The material is a synthetic fabric of neoprene rubber, and the sealing column is a central continuous cylindrical shape, which is continuously inflated by an external blower and equipped with balance holes in each part. Therefore, the entire working state will tightly wrap the truck compartment. Achieve the sealing effect.
Description:

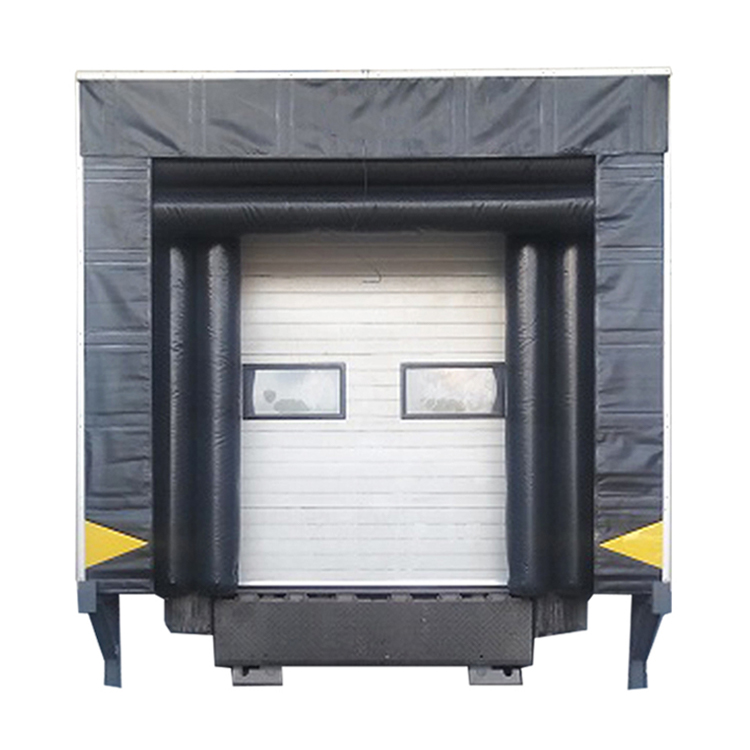

Inflatable Warehouse Loading Dock Shelter or Dock Seal.It is the most advanced and most high-end dock seal. Adopt the PVC fabric material as the airbag. When working, the motorized air pump motor blow air into the joined air bags, to fill the space between door and truck containers. It can work for trucks with various container sizes and high requirement for air-tightness and thermal insulation.Inflatable Warehouse Loading Dock Shelter or Dock Seal adapts accurately to various size of lorry or containers. It offers excellent sealing performance and prevents outdoor heat entering warehouse. Thus it is fit for areas with very high demand for thermal insulation and air-tightness, like food and pharmaceutical warehouses.
Applications:
Loading bays area, Loading docks area, Logistics Warehouse, Cold-chain application.
Yueruis is ready to provide our best quality Inflatable Warehouse Loading Dock Shelter or Dock Seal to all customers around the world.
